Well Connected Alliance - New Zealand Transport Agency




90 x 3Dimensional precast panels

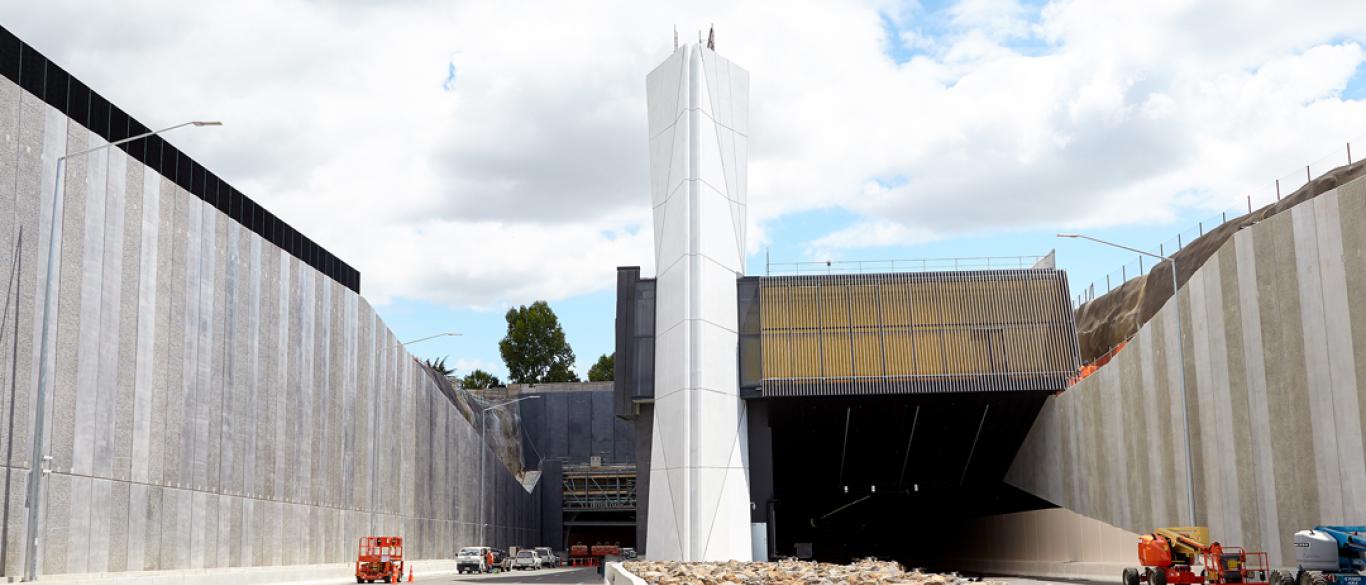

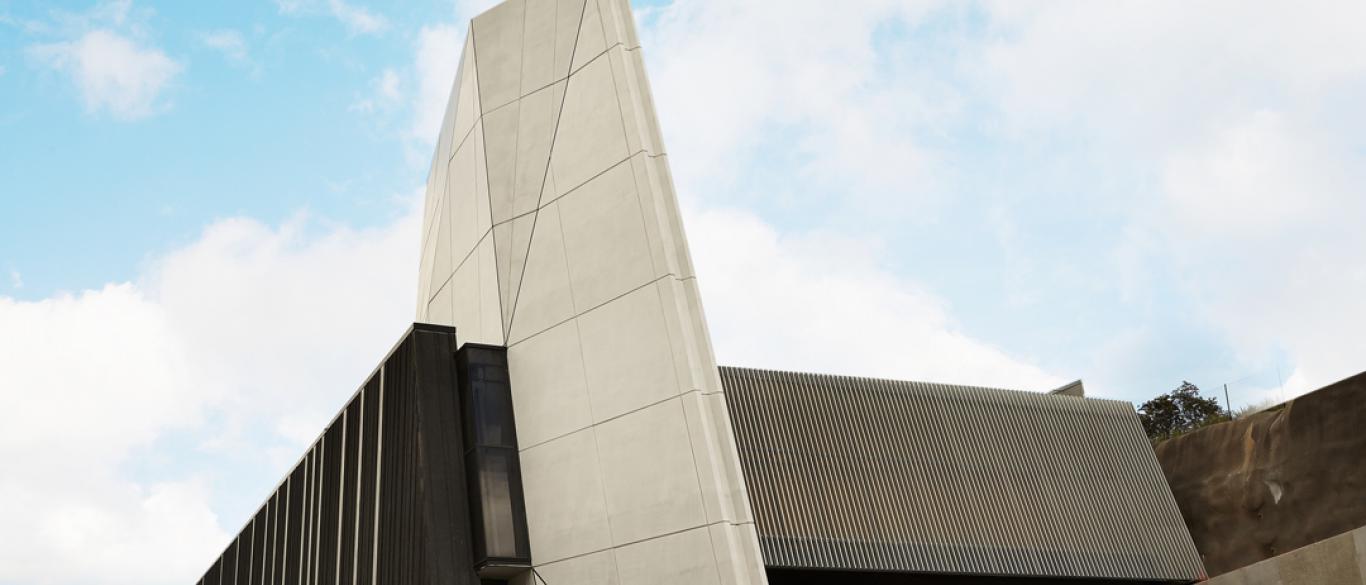

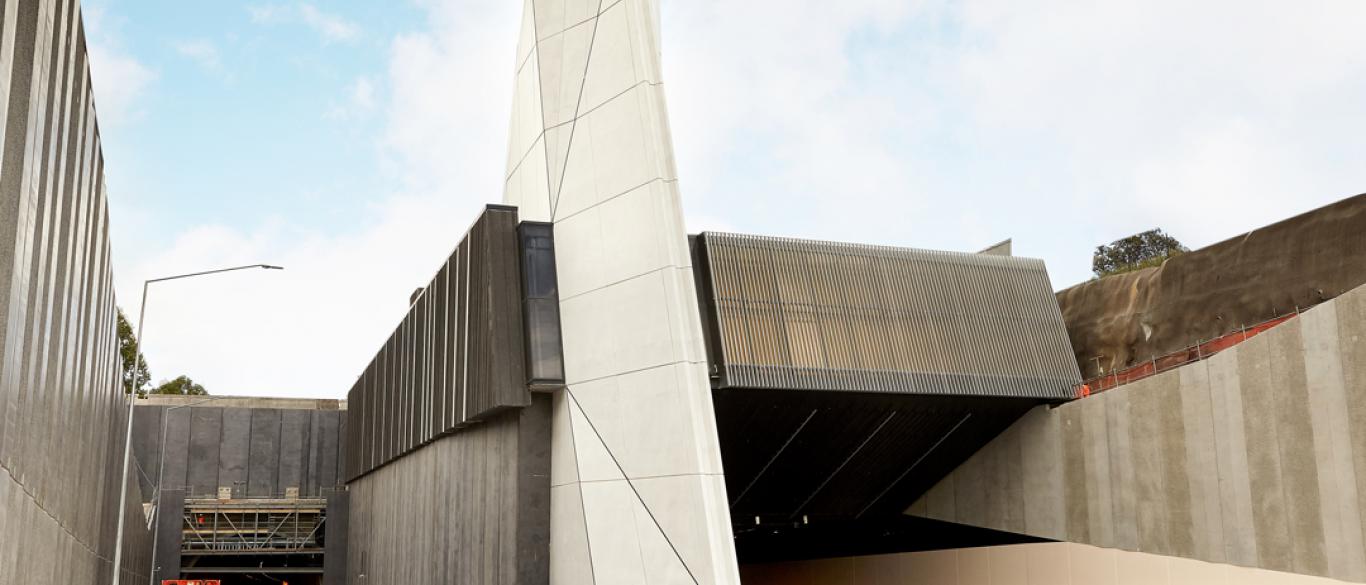

Southern Ventilation Stack

The ventilation stack looks more like an artistic sail against the sky than a functional shaft that will clear exhaust fumes from the Waterview Tunnels.
Soaring 35 metres into the sky, it provides an impressive skyscape and fitting entrance to the 14 metre diameter tunnels.

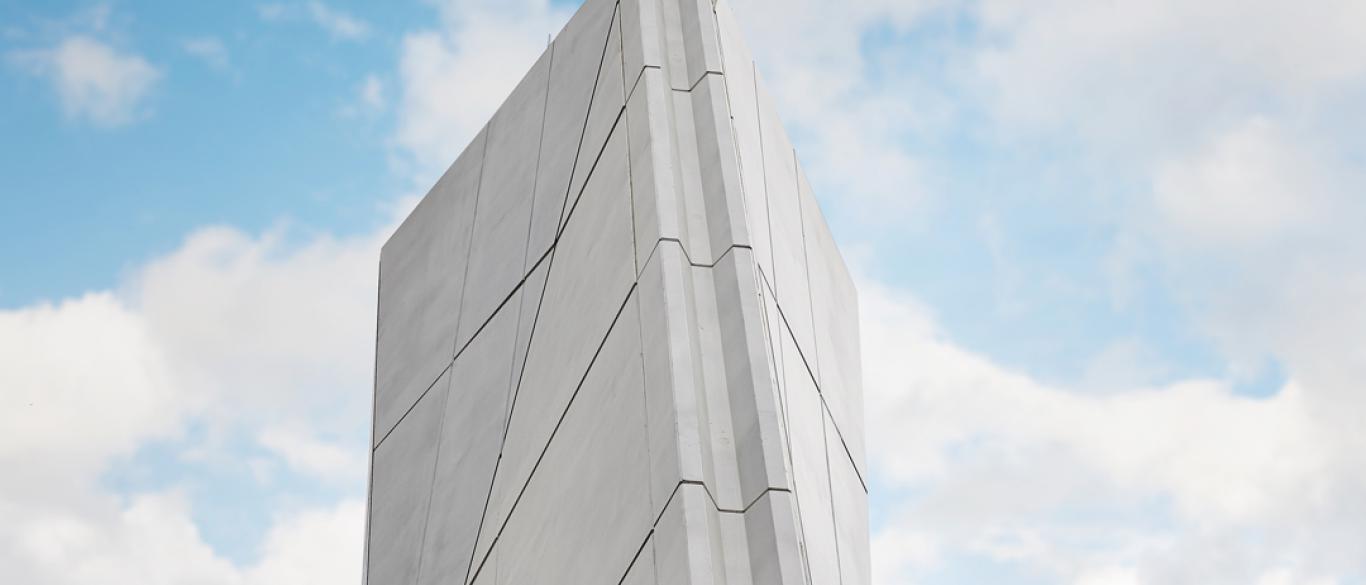

Made from 90 x 3Dimensional precast panels and stained white, a true hallmark project for the Wilson brand.

Inside the tunnels, the ventilation system will comprise of 62 jet fans suspended from the roof of each tunnel.
